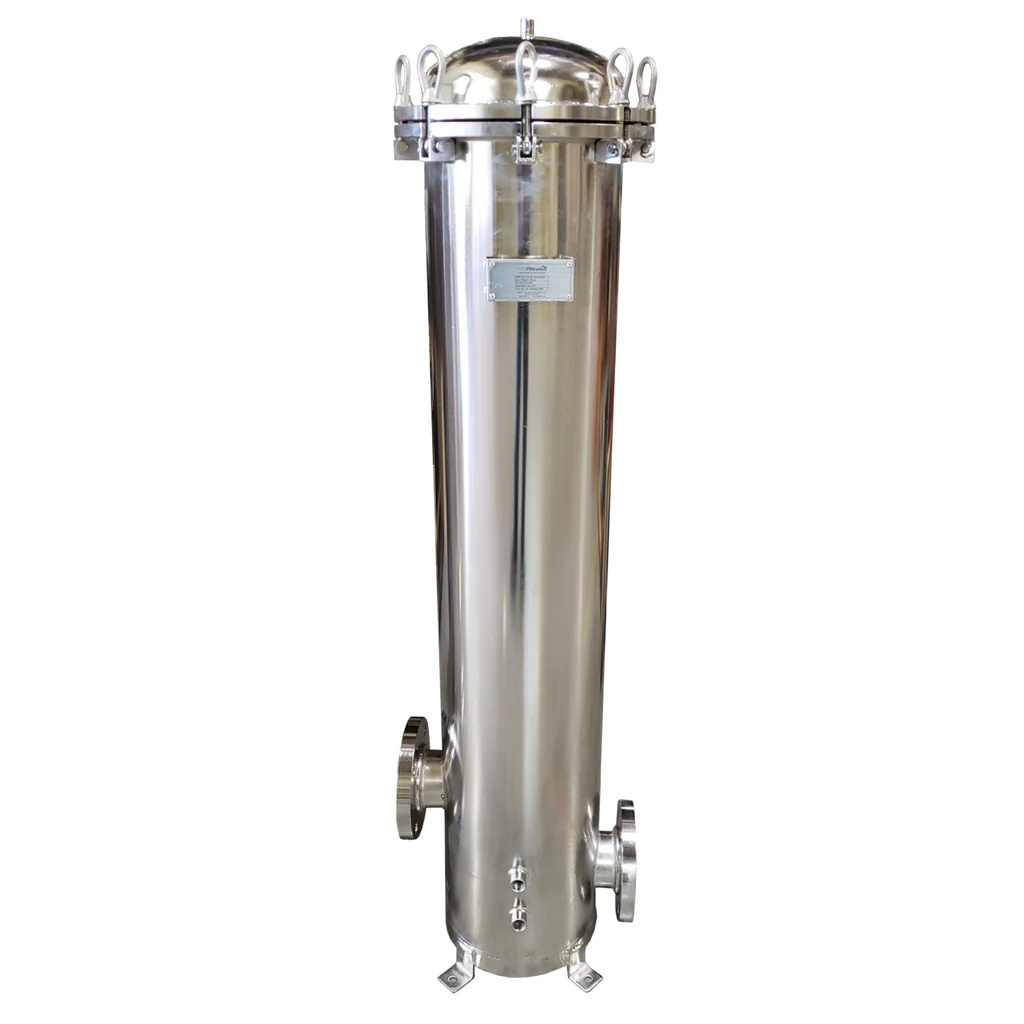

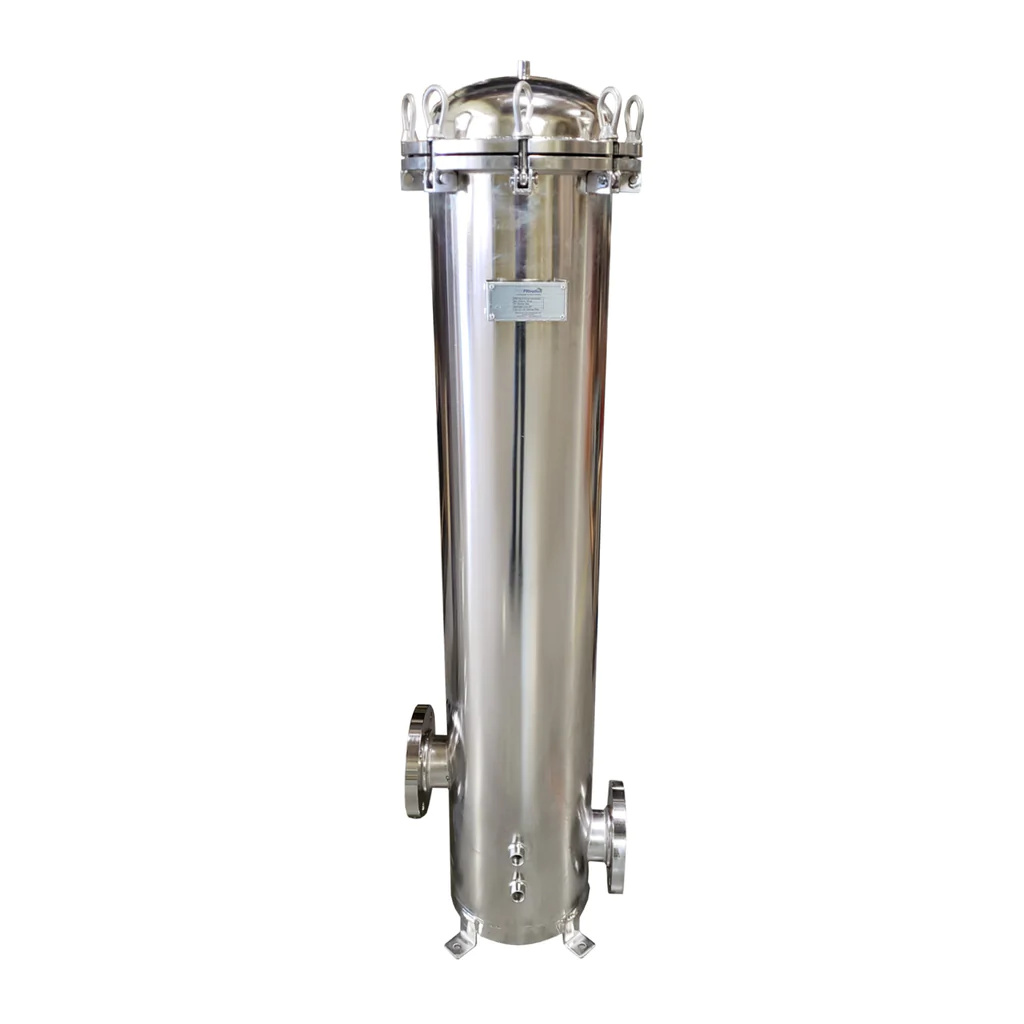

3 Inch Flange In/Out 304 Stainless Steel 7 Cartridge Filter Housing for 40" Cartridges

Product Categories

Shanghai Runlan Filtration Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 3 Inch Flange InOut 304 Stainless Steel 7 Cartridge Filter Housing for 40quot Cartridges
Brand: Runlan
Price: 500.00 USD

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops

Showroom Location : Russia, Australia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : Pressure vessel, Pump

Condition : New

Place of Origin : Shanghai, China

Brand Name : Runlan

Voltage : 220/240V,380V,50Hz,

Dimension(L*W*H) : can be customized

Weight : 30 kg

Warranty : 1 Year

Material : 304 SS construction for corrosion resistance

Cartridge Filters : Uses (7) 40 Inch Cartridge Filters

Flow Capacity : 168 gpm

Flange Inlet/Outlet : 3 Inch 150#

O-Ring : EPDM

drains : 1/2" NPT

pressure gauge or relief valve : Top vent port

Max. Operating pressure : 145 psig

Operating temperature : 40°-140°F

Filter Cartridges : 2.5" x 40" Filter Cartridges

Price : $500.00/sets 1-4 sets

MOQ : 1

Contact Now

Product Description

Specification

item	value
Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops
Showroom Location	Russia, Australia
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Hot Product 2019
Warranty of core components	1 Year
Core Components	Pressure vessel, Pump
Condition	New
Place of Origin	China
	Shanghai
Brand Name	Runlan
Voltage	220/240V,380V,50Hz,
Power
Dimension(LWH)	can be customized
Weight	30kg
Warranty	1 Year
Material	304 SS construction for corrosion resistance
Cartridge Filters	Uses (7) 40 Inch Cartridge Filters
Flow Capacity	168 gpm
Flange Inlet/Outlet	3 Inch 150#
O-Ring	EPDM
drains	1/2" NPT
pressure gauge or relief valve	Top vent port
Max. Operating pressure	145 psig
Operating temperature	40°-140°F
Filter Cartridges	2.5" x 40" Filter Cartridges

Packing & Delivery

Company Profile

FAQ

3 Inch Flange In/Out 304 Stainless Steel 7 Cartridge Filter Housing for 40" Cartridges Images
